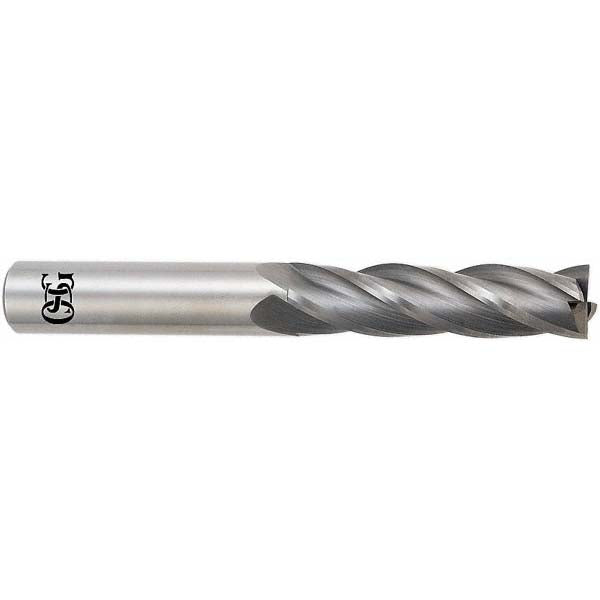

0.1575" 4-Flute Solid Carbide Square End Mill - OSG 464-1575

OSG

0.1575" 4-Flute Solid Carbide Square End Mill - OSG 464-1575

MFR# 464-1575Series 464

$23.45List $29.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The OSG 464-1575 is a 0.1575 4-flute Solid Carbide square end mill. 0.7480 length of cut. Series 464.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.7480
Length of cut range0.7000 - 0.8000
Length typeLong
Mill diameter0.1575
Number of flutes4
Overall length (mm)57.00
Shank diameter (mm)4.00
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Kennametal0.1575" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN - Kennametal 5824223 $51.93 OSG0.1575" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG HP434-1575 $31.10 OSG0.1575" 4-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 457104311 $93.14 Iscar0.1575" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5620052 $49.10
