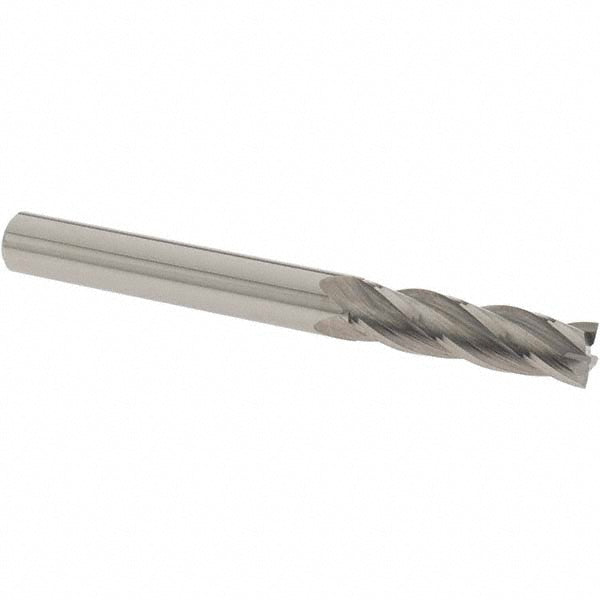

5/16" 4-Flute Solid Carbide Square End Mill - OSG 464-3125

OSG

5/16" 4-Flute Solid Carbide Square End Mill - OSG 464-3125

MFR# 464-3125Series 464

$37.31List $47.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide

Description

The OSG 464-3125 is a 5/16 4-flute Solid Carbide (Micrograin) square end mill. 1-1/8 length of cut, 3 overall length. Series 464.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length typeLong
Material gradeMicrograin
Mill diameter in5/16
Number of flutes4
Overall length in3
Shank diameter in5/16
Variable helixNo
Variable indexNo
