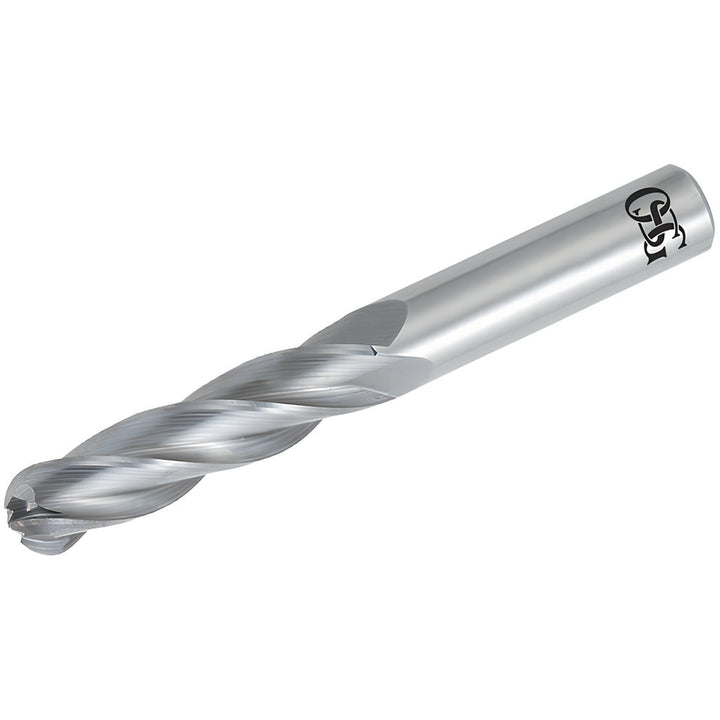

7/16in" 4-Flute Solid Carbide Ball End Mill - OSG 464-4375-BN
MFR# 464-4375-BNSeries 464BN
$81.50List $104.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 464-4375-BN is a 7/16in 4-flute Solid Carbide (Micrograin) ball end mill. 2in length of cut, 4in overall length. Series 464BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in2in
Length typeLong
Manufacturers catalog number464-4375-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in7/16in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2188
Number of flutes4
Overall length in4in
Reach length2.0000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in7/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
