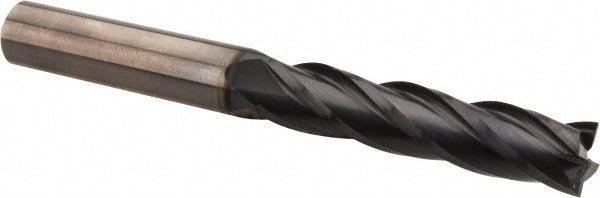

7/16" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 464-437511

OSG

7/16" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 464-437511

MFR# 464-437511Series 464

$95.26List $122.18 Save 22%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG 464-437511 is a 7/16 4-flute Solid Carbide (Micrograin) square end mill. 2 length of cut, 4 overall length. Series 464.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length typeLong
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in4
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
