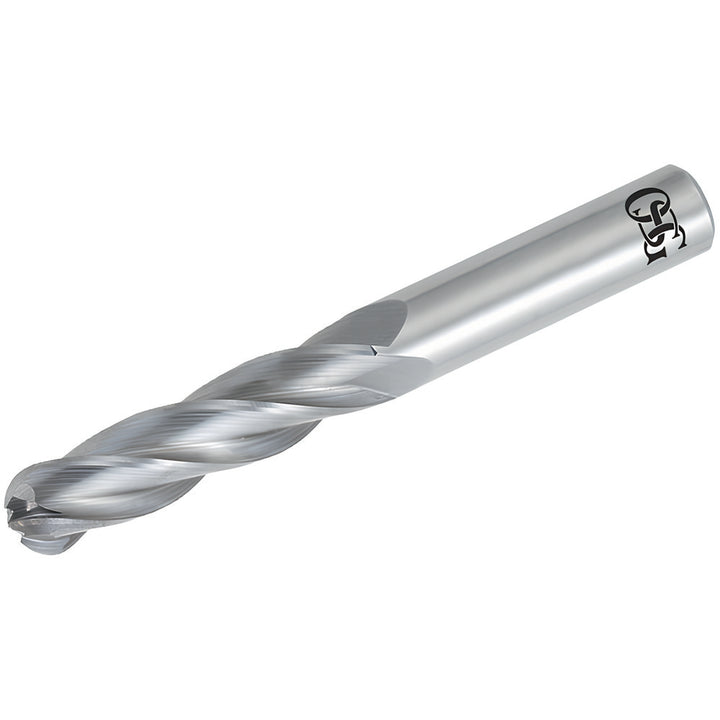

1/2in" 4-Flute Solid Carbide Ball End Mill, TiCN - OSG 464-5000-BN08

OSG

1/2in" 4-Flute Solid Carbide Ball End Mill, TiCN - OSG 464-5000-BN08

MFR# 464-5000-BN08Series 464BN

$101.76List $130.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 464-5000-BN08 is a 1/2in 4-flute Solid Carbide ball end mill with a TiCN finish for longer tool life. 2in length of cut, 4in overall length. Series 464BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in2in
Length typeLong
Manufacturers catalog number464-5000-BN08
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2500
Number of flutes4
Overall length in4in
Reach length2.0000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in1/2in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
