OSG

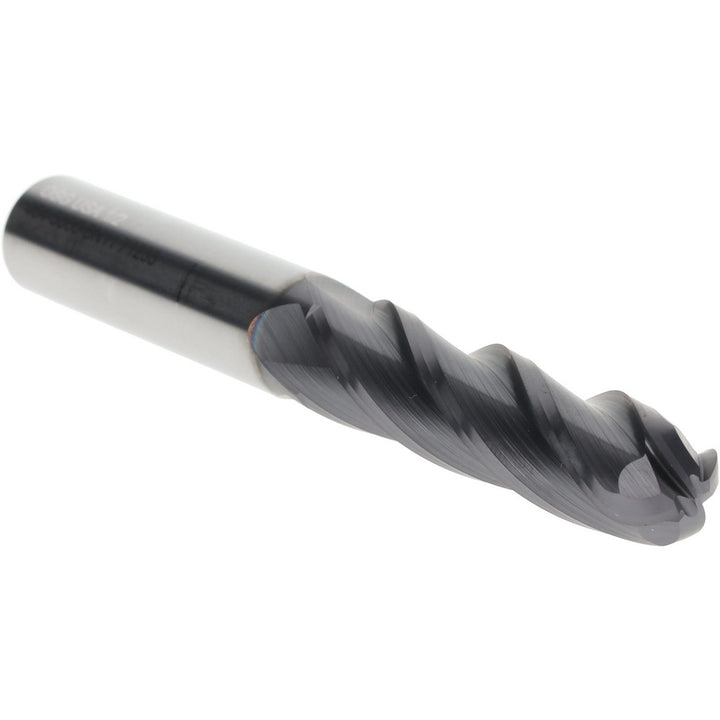

1/2" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG 464-5000-BN11

MFR# 464-5000-BN11Series 464BN

$114.18List $146.43 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG 464-5000-BN11 is a 1/2 4-flute Solid Carbide (TiAlN) ball end mill with a TiAlN finish for longer tool life. 2 length of cut, 4 overall length. Series 464BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in2

Length typeLong

Manufacturers catalog number464-5000-BN11

Material gradeTiAlN

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.2500

Number of flutes4

Overall length in4

Reach length2.0000

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material

Shank diameter in1/2

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
