OSG

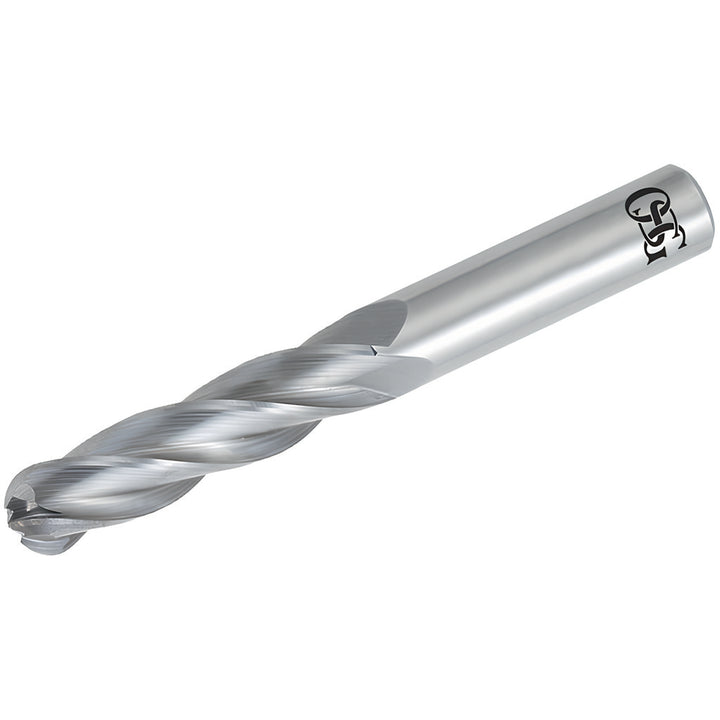

5/8in" 4-Flute Solid Carbide Ball End Mill - OSG 464-6250-BN
MFR# 464-6250-BNSeries 464BN
$181.32List $228.51
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 464-6250-BN is a 5/8in 4-flute Solid Carbide (Micrograin) ball end mill. 2-1/4in length of cut, 5in overall length. Series 464BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in2-1/4in
Length typeLong
Manufacturers catalog number464-6250-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.3125
Number of flutes4
Overall length in5in
Reach length2.2500
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in5/8in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
