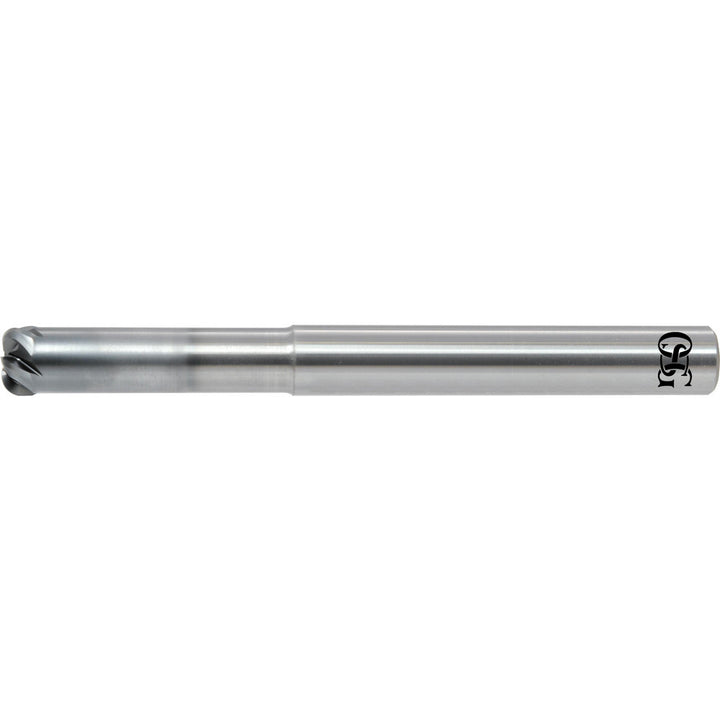

0.4724" 5-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 48106533

MFR# 48106533Series 4572

$240.87List $308.93 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingWXS

Description

The OSG 48106533 is a 0.4724 5-flute Solid Carbide corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series 4572.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishWXS

Coolant throughNo

Corner radius (mm)3.00

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut1.0236

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter0.4724

Mill diameter tolerance0.00/-0.03 mm

Neck diameter (mm)11.00

Number of flutes5

Overall length (mm)110.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length (mm)24.00

Shank diameter (mm)12.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
