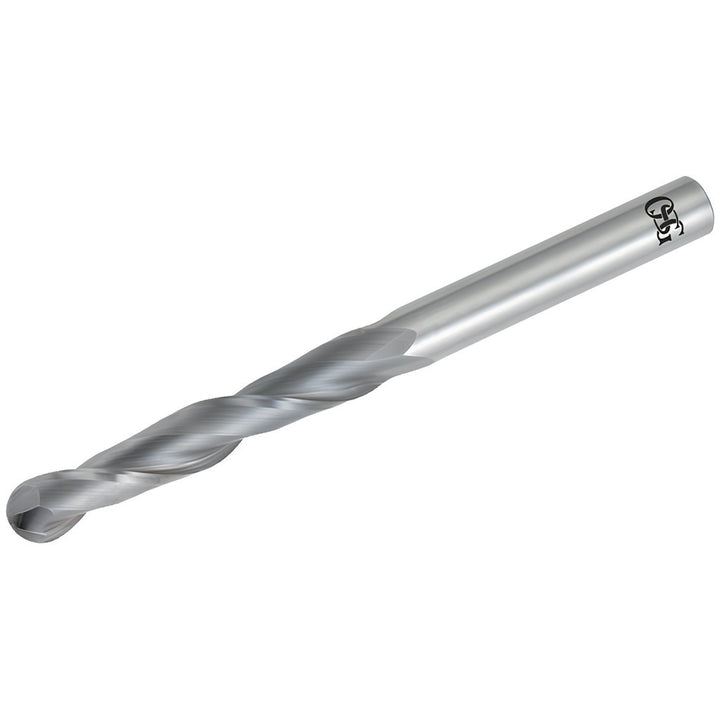

7/16in" 2-Flute Solid Carbide Ball End Mill - OSG 482-4375-BN

OSG

7/16in" 2-Flute Solid Carbide Ball End Mill - OSG 482-4375-BN

MFR# 482-4375-BNSeries 482BN

$112.24List $143.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The OSG 482-4375-BN is a 7/16in 2-flute Solid Carbide (Micrograin) ball end mill. 3in length of cut, 6in overall length. Series 482BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3in
Length typeExtra Long
Manufacturers catalog number482-4375-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in7/16in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2188
Number of flutes2
Overall length in6in
Reach length3.0000
Secondary workpiece materialSteel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in7/16in
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
