OSG

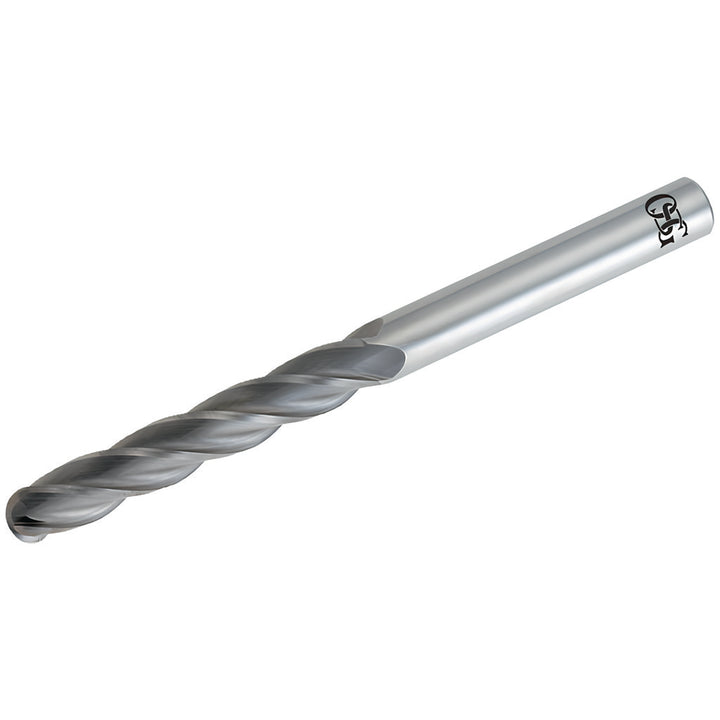

1/8in" 4-Flute Solid Carbide Ball End Mill - OSG 484-1250-BN
MFR# 484-1250-BNSeries 484BN
$25.77List $32.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 484-1250-BN is a 1/8in 4-flute Solid Carbide (Micrograin) ball end mill. 1in length of cut, 3in overall length. Series 484BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1in
Length typeExtra Long
Manufacturers catalog number484-1250-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/8in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0625
Number of flutes4
Overall length in3in
Reach length1.0000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in1/8in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
