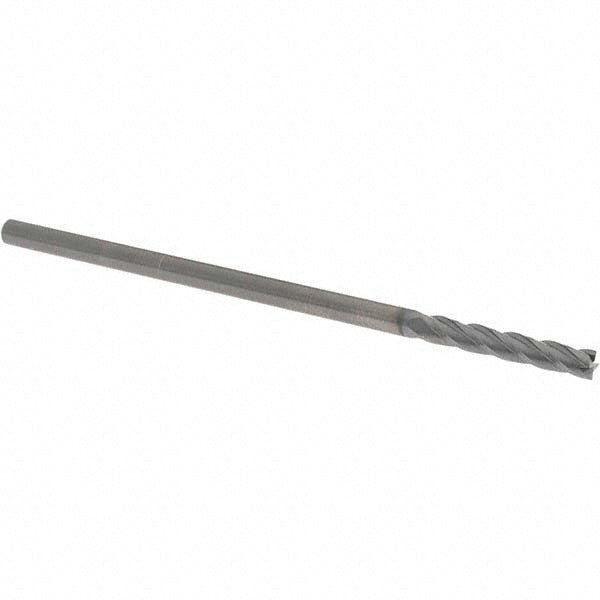

1/4" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 484-250208

OSG

1/4" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 484-250208

MFR# 484-250208Series 484

$74.38List $95.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 484-250208 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 6 overall length. Series 484.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in6
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
