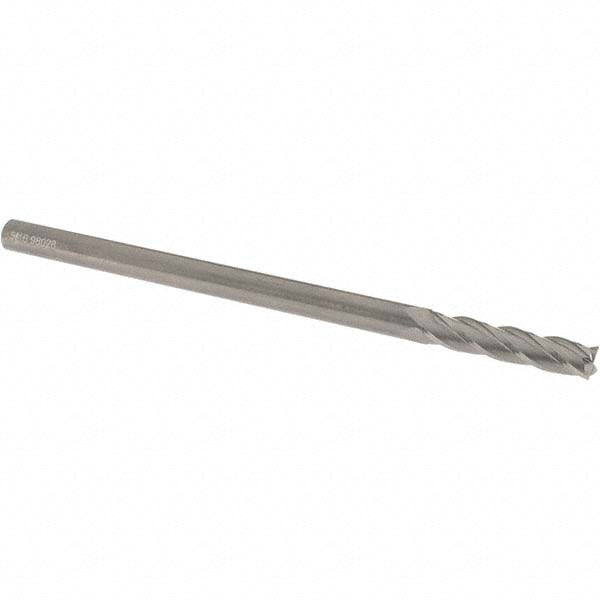

5/16" 4-Flute Solid Carbide Square End Mill - OSG 484-3127

OSG

5/16" 4-Flute Solid Carbide Square End Mill - OSG 484-3127

MFR# 484-3127Series 484

$81.73List $103.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide

Description

The OSG 484-3127 is a 5/16 4-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 6 overall length. Series 484.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in5/16
Number of flutes4
Overall length in6
Shank diameter in5/16
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

GWS5/16" 4-Flute Solid Carbide Corner Radius End Mill, FX7 - GWS 1034022 $75.22 Guhring5/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9042580079400 $90.93 OSG5/16" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 484-312708 $97.51 Guhring5/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9042500079400 $81.82
