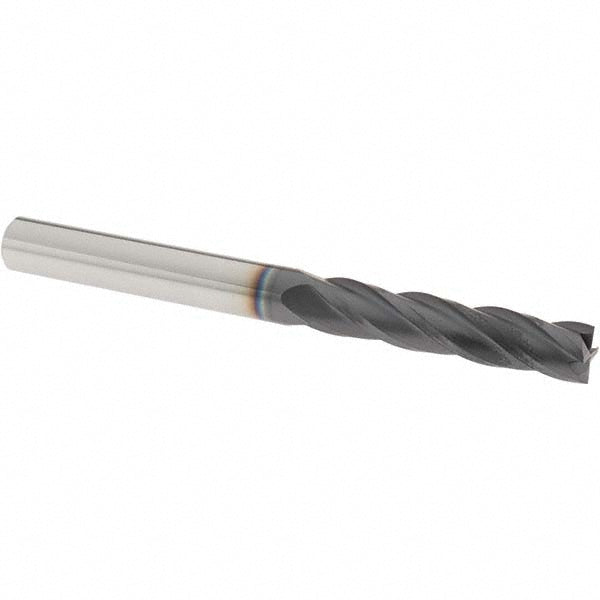

3/8" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 484-375011

OSG

3/8" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 484-375011

MFR# 484-375011Series 484

$76.41List $98.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG 484-375011 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 1-3/4 length of cut, 4 overall length. Series 484.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/4
Length typeExtra Long
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in4
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
