OSG

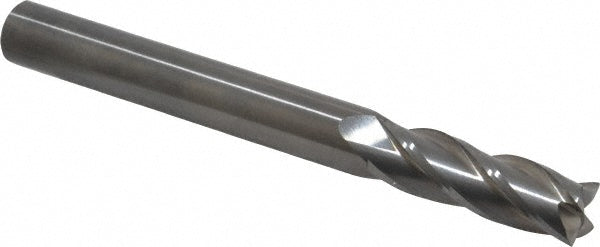

5/8" 4-Flute Solid Carbide Square End Mill - OSG 484-6251
MFR# 484-6251Series 484
$181.07List $228.19
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
Description
The OSG 484-6251 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill. 2 length of cut, 6 overall length. Series 484.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Material gradeMicrograin
Mill diameter in5/8
Number of flutes4
Overall length in6
Shank diameter in5/8
Variable helixNo
Variable indexNo
