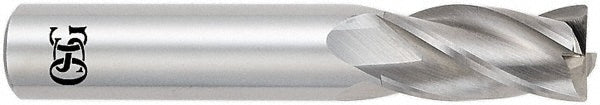

1" 4-Flute Solid Carbide Corner Radius End Mill - OSG 496-1003

OSG

1" 4-Flute Solid Carbide Corner Radius End Mill - OSG 496-1003

MFR# 496-1003Series 496

$296.44List $380.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The OSG 496-1003 is a 1 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. 1-1/2 length of cut, 4 overall length. Series 496.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleMedium
Length of cut in1-1/2
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in1
Mill diameter tolerance0.0000 to -0.0020 in
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in1
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
