OSG

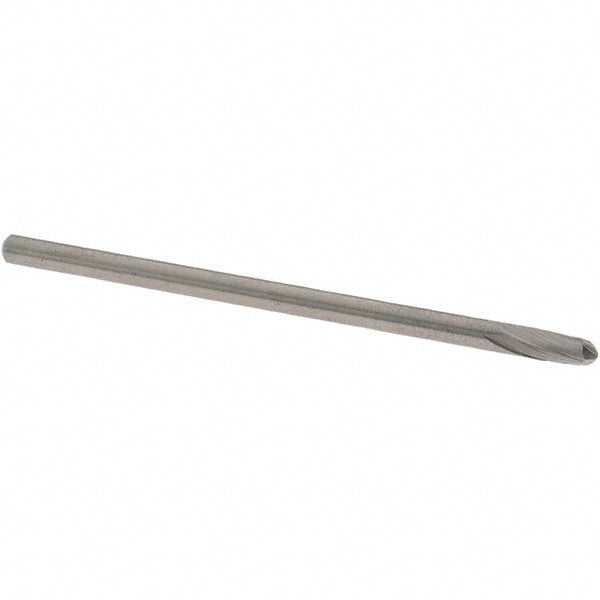

1/8in" 2-Flute Solid Carbide Ball End Mill - OSG 497-1250
MFR# 497-1250Series 497
$17.27List $22.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 497-1250 is a 1/8in 2-flute Solid Carbide ball end mill. 3/16in length of cut, 2-1/2in overall length. Series 497.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle15
Helix styleLow
Length of cut in3/16in
Length typeStandard
Manufacturers catalog number497-1250
Material removal typeRoughing & Finishing
Mill diameter in1/8in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0625
Number of flutes2
Overall length in2-1/2in
Reach length0.1875
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/8in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
