OSG

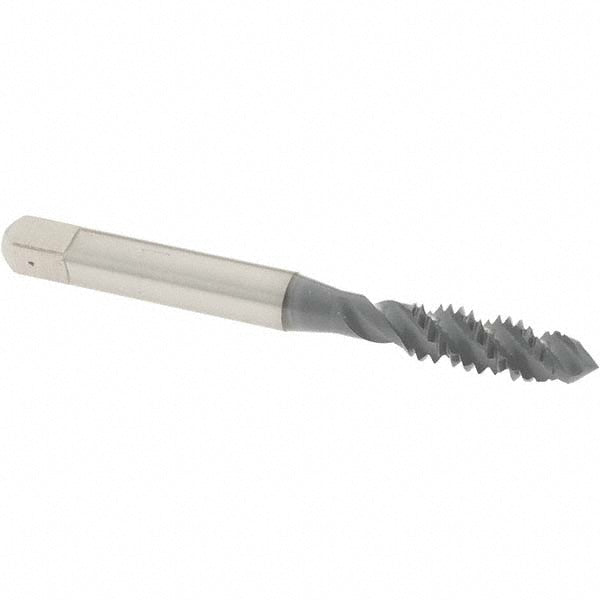

1/4-20 UNC High-Speed Steel Tap, elektraLUBE - OSG 5003402
MFR# 5003402Series 107
$25.19List $32.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingelektraLUBE
Description
The OSG 5003402 is a 1/4-20 UNC High-Speed Steel tap with a elektraLUBE finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)49.1
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter (mm)9.3218
Square length (mm)11.1125
Square size (mm)6.985
Thread directionRight Hand
Thread limitH5
Thread size in1/4-20
Thread standardUNC
