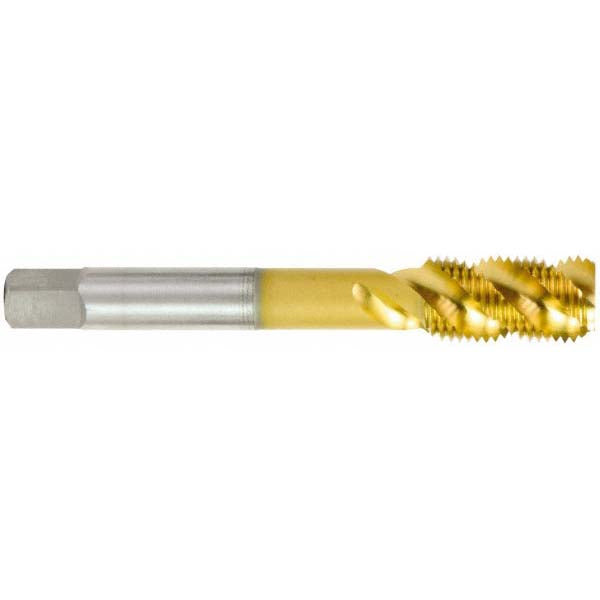

1/4-20 UNC High-Speed Steel Tap, TiN - OSG 5003505
MFR# 5003505Series 107
$28.59List $36.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiN
Description
The OSG 5003505 is a 1/4-20 UNC High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.7
Number of flutes3
Overall length in2-1/2
Shank diameter0.255
Square length0.3125
Square size0.191
Threads per inch20
Thread directionRight Hand
Thread length0.645
Thread limitH5
Thread size in1/4-20
Thread standardUNC
