OSG

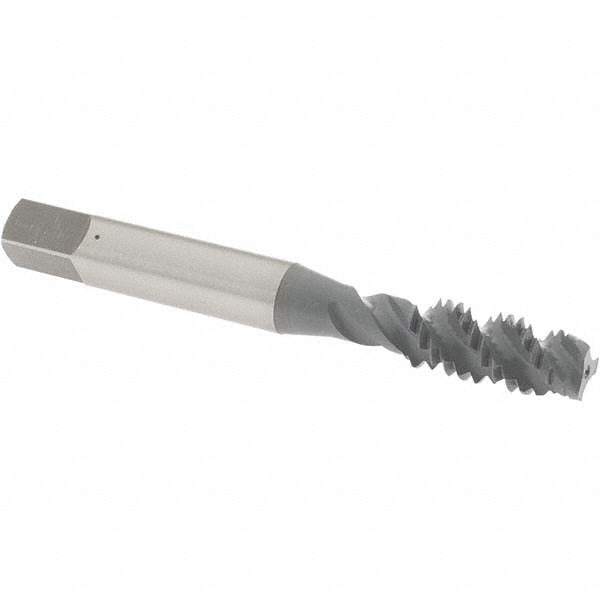

5/16-18 UNC High-Speed Steel Tap, elektraLUBE - OSG 5004602
MFR# 5004602Series 107
$30.76List $39.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingelektraLUBE
Description
The OSG 5004602 is a 5/16-18 UNC High-Speed Steel tap with a elektraLUBE finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.9724494488189
Number of flutes3
Overall length in2-23/32
Shank diameter0.429
Thread directionRight Hand
Thread limitH5
Thread size in5/16-18
Thread standardUNC
