OSG

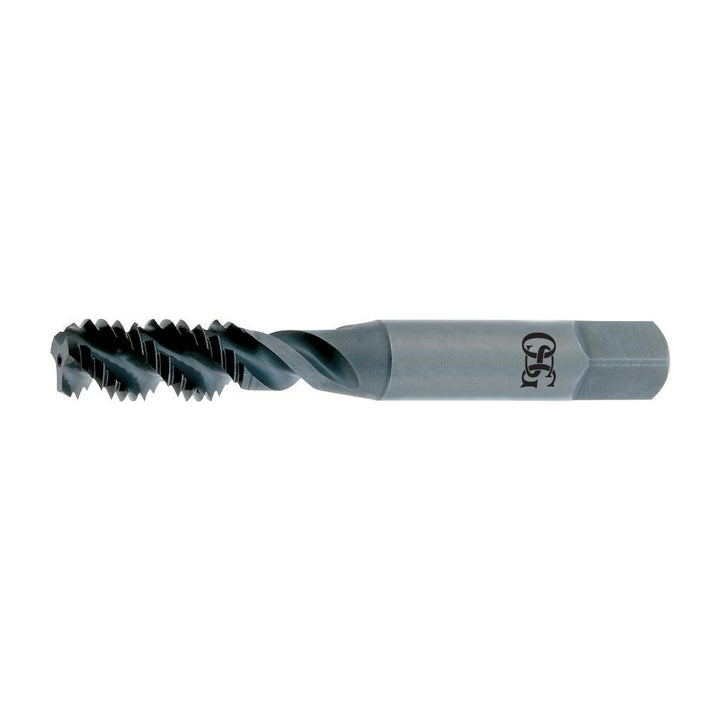

1/2-13 UNC High-Speed Steel Tap, TiCN - OSG 5007008
MFR# 5007008Series 107
$70.35List $90.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiCN
Description
The OSG 5007008 is a 1/2-13 UNC High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes3
Overall length in3-3/8
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.1410
Square length0.4375
Square size0.2750
Threads per inch13
Thread directionRight Hand
Thread length0.9600
Thread limitH5
Thread size in1/2-13
Thread standardUNC
