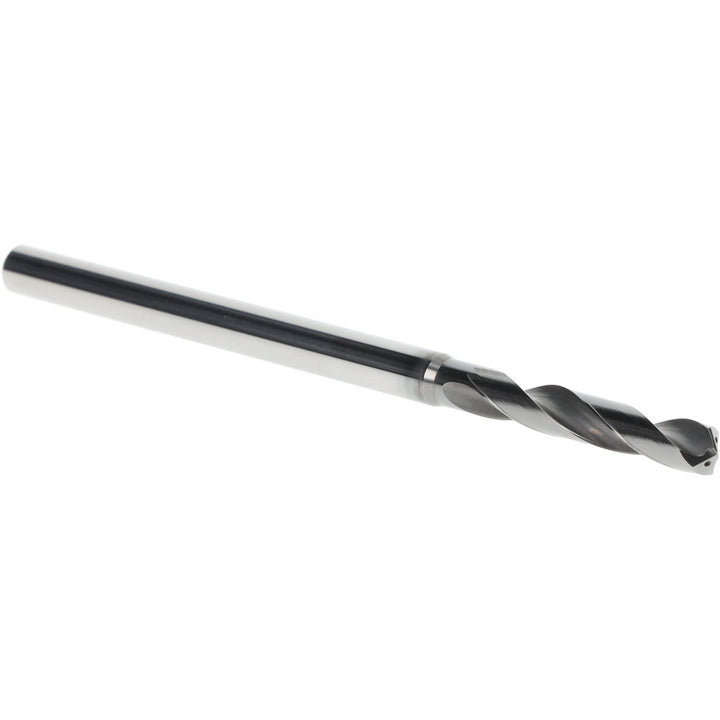

11/64" Solid Carbide Screw Machine Drill Bit, WXL, 140° point - OSG 520017112

OSG

11/64" Solid Carbide Screw Machine Drill Bit, WXL, 140° point - OSG 520017112

MFR# 520017112Series 5200

$93.43List $119.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/64
Flutes2
CoatingWXL

Description

The OSG 520017112 is a 11/64" Solid Carbide Screw Machine drill bit with a WXL finish, 140° point. Suited for steel, stainless steel, cast iron, titanium, titanium alloy. Series 5200.

Specifications

Coating finishWXL
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size in11/64
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)27.00
Flute typeSpiral
Number of flutes2
Overall length3.1496
Point typeR-Thinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter0.1875
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
