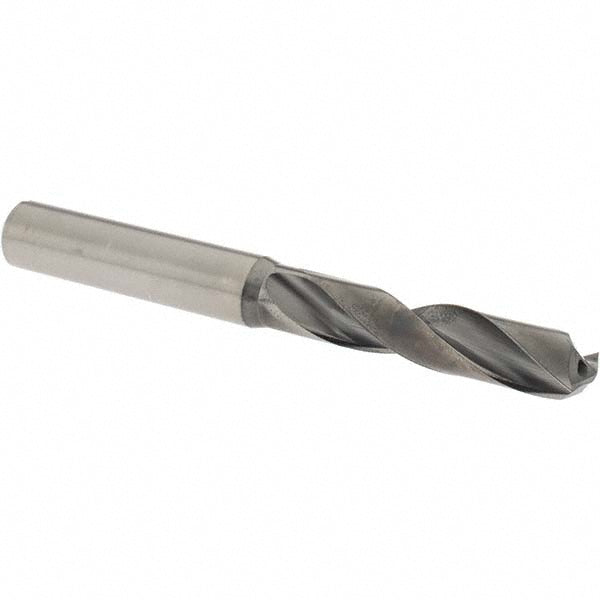

9/16" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - OSG 520056212

OSG

9/16" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - OSG 520056212

MFR# 520056212Series 5200

$276.32List $354.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/16
Flutes2
CoatingCoated

Description

The OSG 520056212 is a 9/16" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for steel, stainless steel, cast iron, titanium, titanium alloy. Series 5200.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit size in9/16
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)72.00
Flute typeSpiral
Number of flutes2
Overall length5.5118
Point typeR-Thinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter0.6250
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
