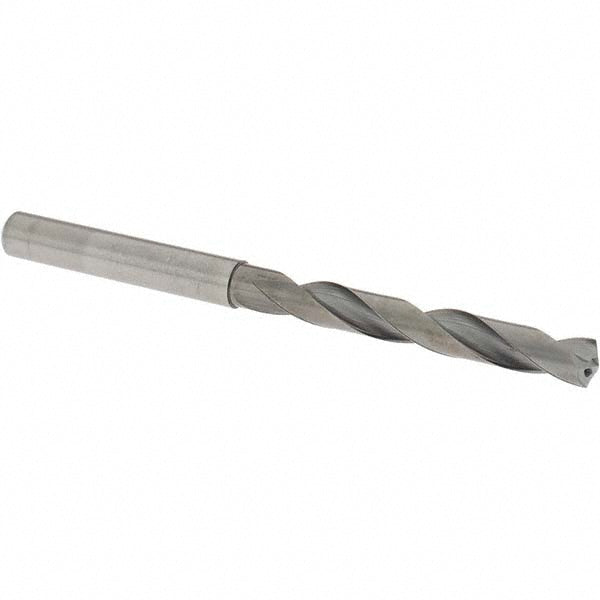

0.4063" Solid Carbide Drill Bit, WXL, 140° point - OSG 521040612
MFR# 521040612Series 5210
$231.07List $296.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 521040612 is a 0.4063" Solid Carbide drill bit with a WXL finish, 140° point. Series 5210.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit finish coatingWXL
Drill bit materialSolid Carbide
Drill bit size0.4063
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)83.00
Flute typeSpiral
Number of flutes2
Overall length (mm)146.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceHigh Performance
