OSG
5/8in" 2-Flute Cobalt Ball End Mill - OSG 5211300
MFR# 5211300Series 521
$90.59List $116.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8in
Flutes2
MaterialCobalt
Description

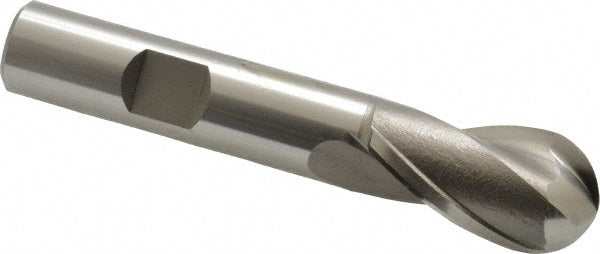

The OSG 5211300 is a 5/8in 2-flute Cobalt (M42) ball end mill. Suited for steel. 1-1/8in length of cut, 3-1/8in overall length. Series 521.
Specifications
Additional informationHSS-Co End Mill High Performance Cobalt HSS End Mills For General Milling Applications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1-1/8in
Length typeStandard
Manufacturers catalog number5211300
Material gradeM42
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerance+0.0011/-0.0000 in
Neck length0.0000
Nose radius0.3125
Number of flutes2
Overall length in3-1/8in
Primary workpiece materialSteel
Reach length1.1250
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in1/2in
Shank typeWeldon Flat
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
