OSG

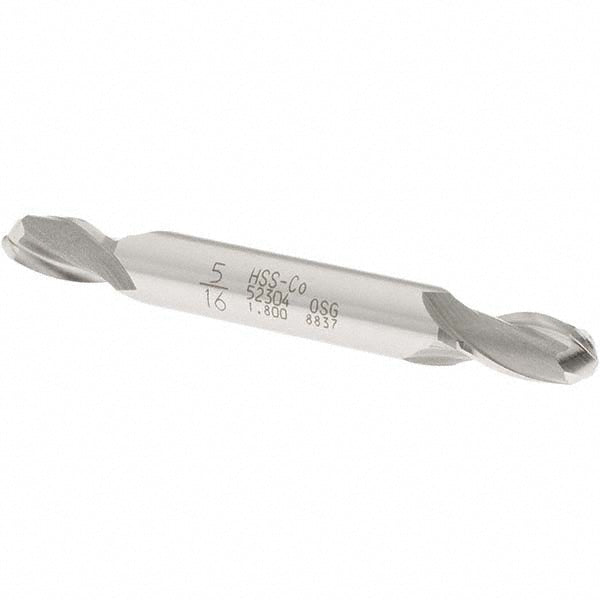

5/16in" 2-Flute Cobalt Ball End Mill - OSG 5230400
MFR# 5230400Series 523
$66.57List $85.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16in
Flutes2
MaterialCobalt
Description
The OSG 5230400 is a 5/16in 2-flute Cobalt (M42) ball end mill. Suited for steel. 9/16in length of cut, 3-1/8in overall length. Series 523.
Specifications
Additional informationHSS-Co End Mill High Performance Cobalt HSS End Mills For General Milling Applications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in9/16in
Length typeStandard
Manufacturers catalog number5230400
Material gradeM42
Material removal typeRoughing & Finishing
Mill diameter in5/16in
Mill diameter tolerance+0.0000/-0.0011 in
Neck length0.0000
Nose radius0.1563
Number of flutes2
Overall length in3-1/8in
Primary workpiece materialSteel
Reach length0.5625
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/8in
Shank typeWeldon Flat
Single or double endDouble
System of measurementFractional Inch
Variable helixNo
Variable indexNo
