OSG

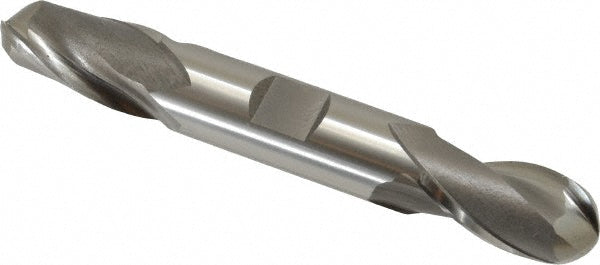

5/8in" 2-Flute Cobalt Ball End Mill - OSG 5232100
MFR# 5232100Series 523
$128.21List $164.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8in
Flutes2
MaterialCobalt
Description
The OSG 5232100 is a 5/8in 2-flute Cobalt (M42) ball end mill. Suited for steel. 1-1/8in length of cut, 4-1/2in overall length. Series 523.
Specifications
Additional informationHSS-Co End Mill High Performance Cobalt HSS End Mills For General Milling Applications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1-1/8in
Length typeStandard
Manufacturers catalog number5232100
Material gradeM42
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerance-0.0004/-0.0015 in
Neck length0.0000
Nose radius0.3125
Number of flutes2
Overall length in4-1/2in
Primary workpiece materialSteel
Reach length1.1250
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in5/8in
Shank typeWeldon Flat
Single or double endDouble
System of measurementFractional Inch
Variable helixNo
Variable indexNo
