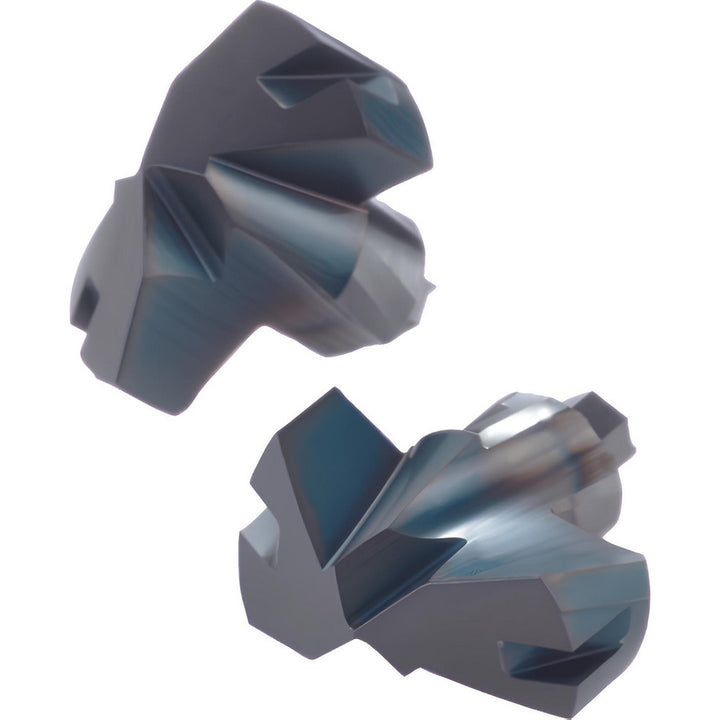

Carbide Insert, Grade XP3425, Cr - OSG 52401003
MFR# 52401003Series 78PXD
$147.56List $189.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeXP3425
CoatingCr
Description
The OSG 52401003 is a carbide indexable insert, grade XP3425, Cr coated. Suited for steel, cast iron, non-ferrous metal.
Specifications
Coating finishCr
Coating processPVD
Coolant throughYes
Cutting diameter in21/32
Drill point angle140
Flute length (mm)3.00
Flute typeHelical
Functional length0.1194
Height (mm)3.00
Included angle degree140
Insert holding methodClamp
Insert seat size4
Iso numberPXDH6563-PC
Manufacturer gradeXP3425
Number of flutes2
Overall length projection0.1194
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal
Spiral typeRegular Spiral
Style78PXD
Tip materialSolid Carbide
