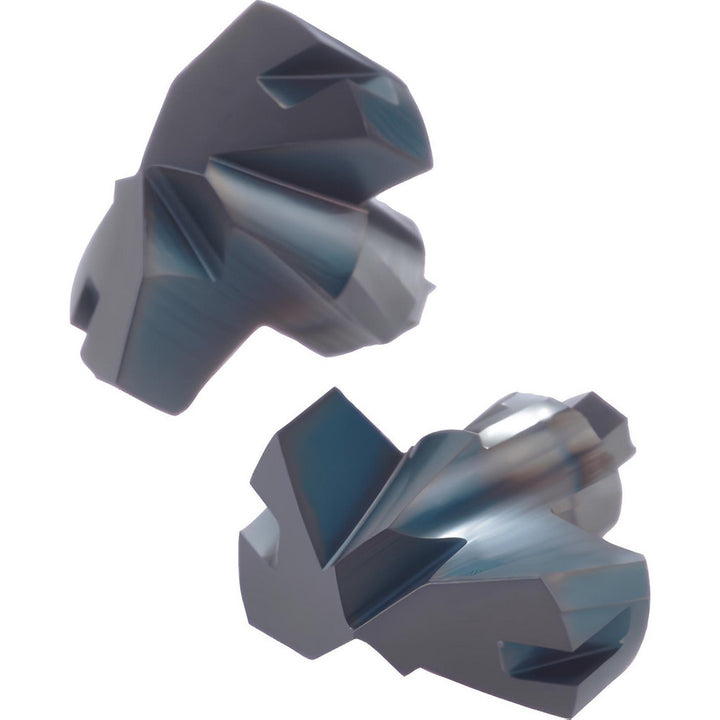

Carbide Insert, Grade XP3425, Cr - OSG 52401006
MFR# 52401006Series 78PXD
$249.47List $314.39
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeXP3425
CoatingCr
Description
The OSG 52401006 is a carbide indexable insert, grade XP3425, Cr coated. Suited for steel, cast iron, non-ferrous metal.
Specifications
Coating finishCr
Coating processPVD
Coolant throughYes
Cutting diameter in3/4
Drill point angle140
Flute length (mm)3.00
Flute typeHelical
Functional length0.1365
Height (mm)3.00
Included angle degree140
Insert holding methodClamp
Insert seat size7
Iso numberPXDH7500-PC
Manufacturer gradeXP3425
Number of flutes2
Overall length projection0.1365
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal
Spiral typeRegular Spiral
Style78PXD
Tip materialSolid Carbide
