5/8" 6-Flute Cobalt Square End Mill, TiCN - OSG 5412508

OSG

5/8" 6-Flute Cobalt Square End Mill, TiCN - OSG 5412508

MFR# 5412508Series 541

$54.90List $70.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes6
MaterialCobalt
CoatingTiCN

Description

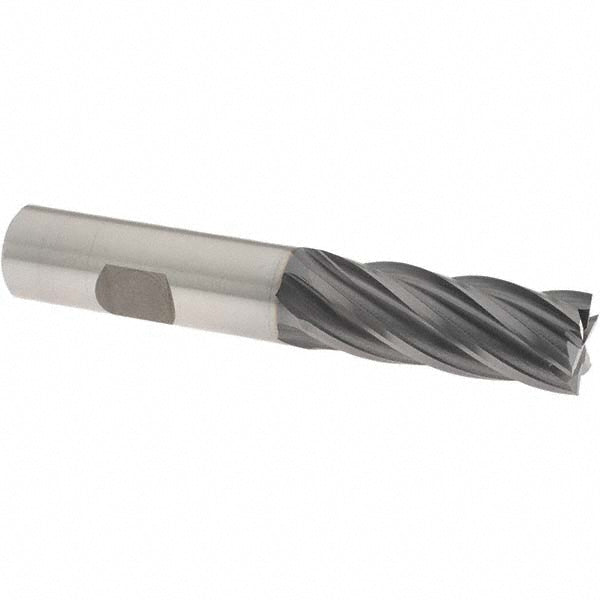

The OSG 5412508 is a 5/8 6-flute Cobalt (M42) square end mill. 1-5/8 length of cut, 3-3/4 overall length. Series 541.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Material gradeM42
Mill diameter in5/8
Number of flutes6
Overall length in3-3/4
Shank diameter in5/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Seco5/8" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03007654 $237.03 Kennametal5/8" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5415951 $428.47 Seco5/8" 6-Flute Solid Carbide Ball End Mill, AlTiN - Seco 03115968 $239.87 Kennametal5/8" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5374997 $428.47
