OSG
7/8in" 4-Flute Cobalt Ball End Mill - OSG 5444100
MFR# 5444100Series 544
$192.72List $247.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/8in
Flutes4
MaterialCobalt
Description

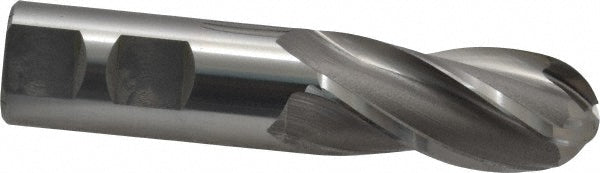

The OSG 5444100 is a 7/8in 4-flute Cobalt (M42) ball end mill. Suited for steel. 1-7/8in length of cut, 4-1/8in overall length. Series 544.
Specifications
Additional informationHSS-Co End Mill High Performance Cobalt HSS End Mills For General Milling Applications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1-7/8in
Length typeStandard
Manufacturers catalog number5444100
Material gradeM42
Material removal typeRoughing & Finishing
Mill diameter in7/8in
Mill diameter tolerance+0.0011/-0.0000 in
Neck length0.0000
Nose radius0.4375
Number of flutes4
Overall length in4-1/8in
Primary workpiece materialSteel
Reach length1.8750
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in7/8in
Shank typeWeldon Flat
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
