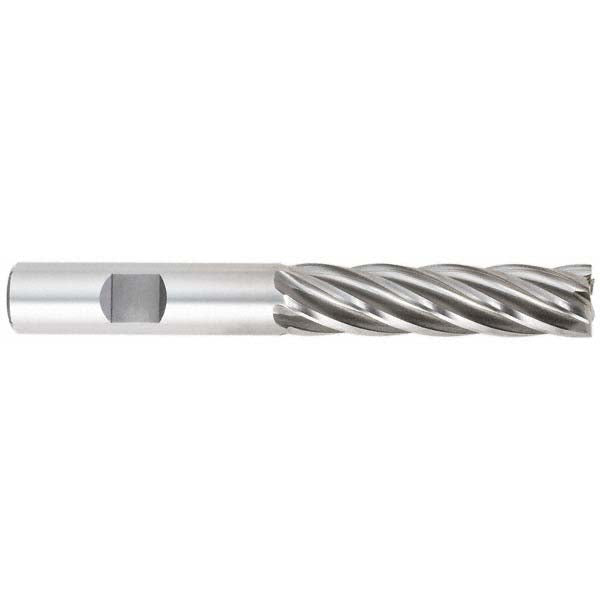

1" 6-Flute Cobalt Square End Mill, TiCN - OSG 5465508
MFR# 5465508Series 546
$173.13List $222.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes6
MaterialCobalt
CoatingTiCN
Description
The OSG 5465508 is a 1 6-flute Cobalt (Micrograin) square end mill. 4 length of cut, 6-1/2 overall length. Series 546.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in4
Length of cut range2.0000+
Length typeLong
Material gradeMicrograin
Mill diameter in1
Number of flutes6
Overall length in6-1/2
Shank diameter in1
Variable helixNo
Variable indexNo
