1/16" 4-Flute Cobalt Square End Mill - OSG 5687200

OSG

1/16" 4-Flute Cobalt Square End Mill - OSG 5687200

MFR# 5687200Series 568

$50.21List $63.28 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes4
MaterialCobalt
CoatingBright/Uncoated

Description

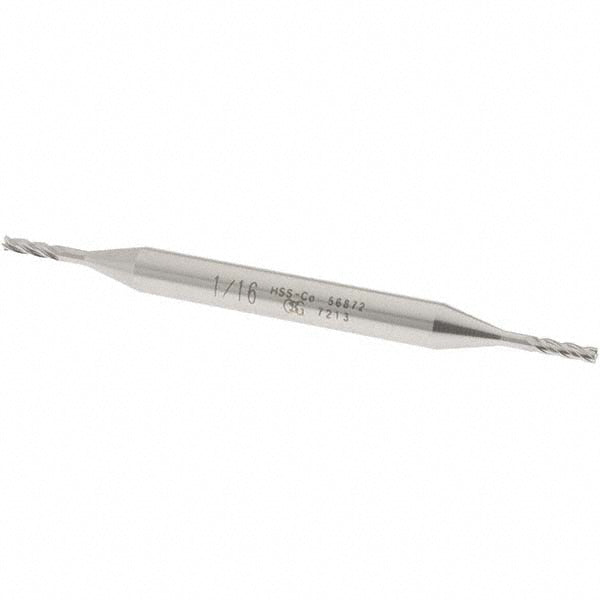

The OSG 5687200 is a 1/16 4-flute Cobalt (M42) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 7/32 length of cut, 2-1/2 overall length. Series 568.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/32
Length of cut range0.2000 - 0.3000
Length typeLong
Material gradeM42
Mill diameter in1/16
Number of flutes4
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in3/16
Single or double endDouble
System of measurementFractional Inch
Variable helixNo
Variable indexNo
