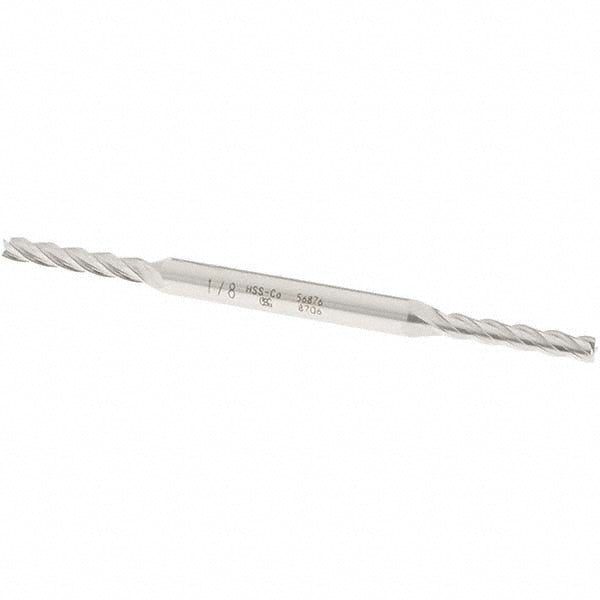

1/8" 4-Flute Cobalt Square End Mill - OSG 5687600

OSG

1/8" 4-Flute Cobalt Square End Mill - OSG 5687600

MFR# 5687600Series 568

$42.54List $54.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialCobalt
CoatingBright/Uncoated

Description

The OSG 5687600 is a 1/8 4-flute Cobalt (M42) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 3/4 length of cut, 3-1/8 overall length. Series 568.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeLong
Material gradeM42
Mill diameter in1/8
Number of flutes4
Overall length in3-1/8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in3/16
Single or double endDouble
System of measurementFractional Inch
Variable helixNo
Variable indexNo
