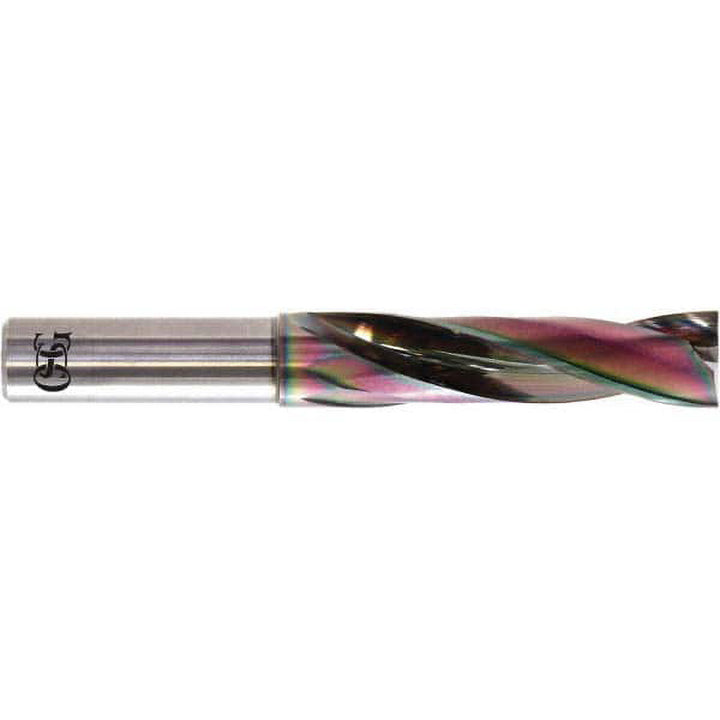

5/32" Solid Carbide Screw Machine Drill Bit, Multi-layer, 180° point - OSG 570015611

OSG

5/32" Solid Carbide Screw Machine Drill Bit, Multi-layer, 180° point - OSG 570015611

MFR# 570015611Series 5700

$69.88List $89.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/32
Flutes2
CoatingMulti-layer

Description

The OSG 570015611 is a 5/32" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 180° point. Suited for steel, cast iron, hardened materials. Series 5700.

Specifications

Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size in5/32
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)19.00
Flute typeRegular Spiral
Number of flutes2
Overall length2.3622
Point typeFlat Bottom
Primary workpiece materialSteel; Cast Iron; Hardened Materials
Shank diameter0.1875
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
