7/32" Solid Carbide Screw Machine Drill Bit, EgiAs, 180° point - OSG 570021811

OSG

7/32" Solid Carbide Screw Machine Drill Bit, EgiAs, 180° point - OSG 570021811

MFR# 570021811Series 5700

$85.22List $109.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2
CoatingEgiAs

Description

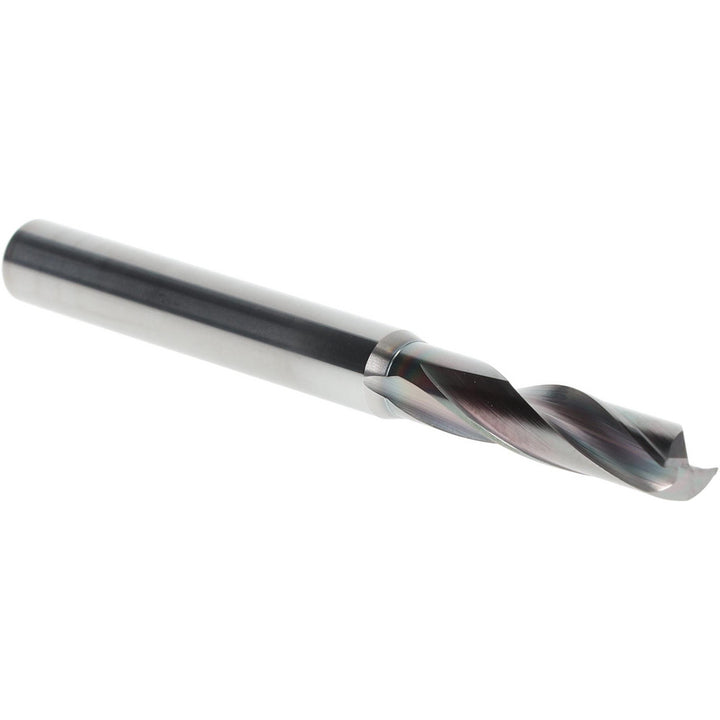

The OSG 570021811 is a 7/32" Solid Carbide Screw Machine drill bit with a EgiAs finish, 180° point. Suited for steel, alloy steel, cast iron. Series 5700.

Specifications

Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size in7/32
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)27.00
Flute typeSpiral
Number of flutes2
Overall length2.5591
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
