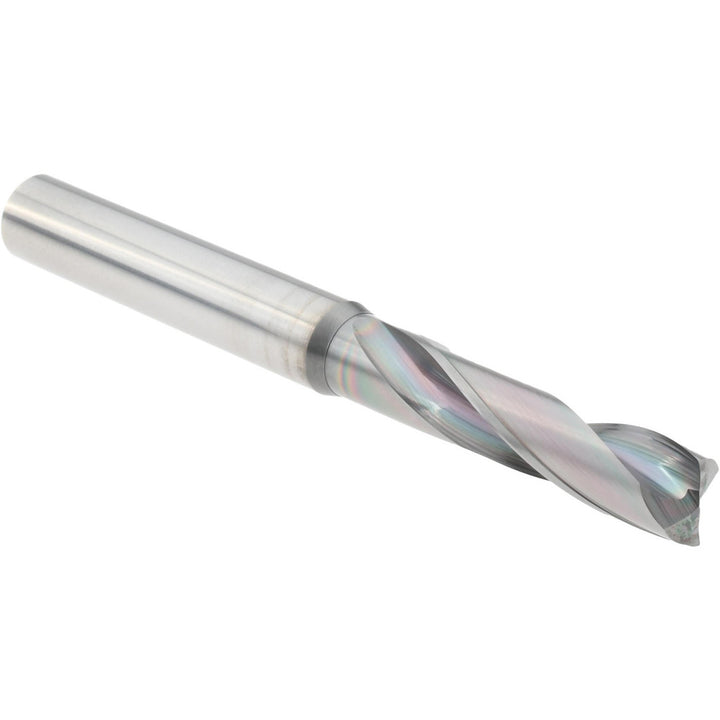

9/32" Solid Carbide Screw Machine Drill Bit, EgiAs, 180° point - OSG 570028111

OSG

9/32" Solid Carbide Screw Machine Drill Bit, EgiAs, 180° point - OSG 570028111

MFR# 570028111Series 5700

$114.48List $146.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/32
Flutes2
CoatingEgiAs

Description

The OSG 570028111 is a 9/32" Solid Carbide Screw Machine drill bit with a EgiAs finish, 180° point. Suited for steel, alloy steel, cast iron. Series 5700.

Specifications

Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit size in9/32
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)34.00
Flute typeSpiral
Number of flutes2
Overall length2.9528
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.3125
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
