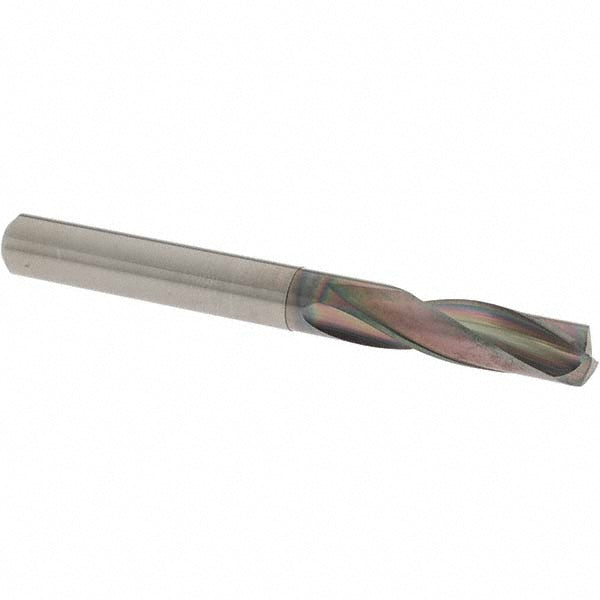

5/16" Solid Carbide Screw Machine Drill Bit, Coated, 180° point - OSG 570031211
MFR# 570031211Series 5700
$151.47List $190.88
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
CoatingCoated
Description
The OSG 570031211 is a 5/16" Solid Carbide Screw Machine drill bit with a Coated finish, 180° point. Suited for steel, alloy steel, cast iron. Series 5700.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit size in5/16
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)34.00
Flute typeSpiral
Number of flutes2
Overall length (mm)75.00
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
