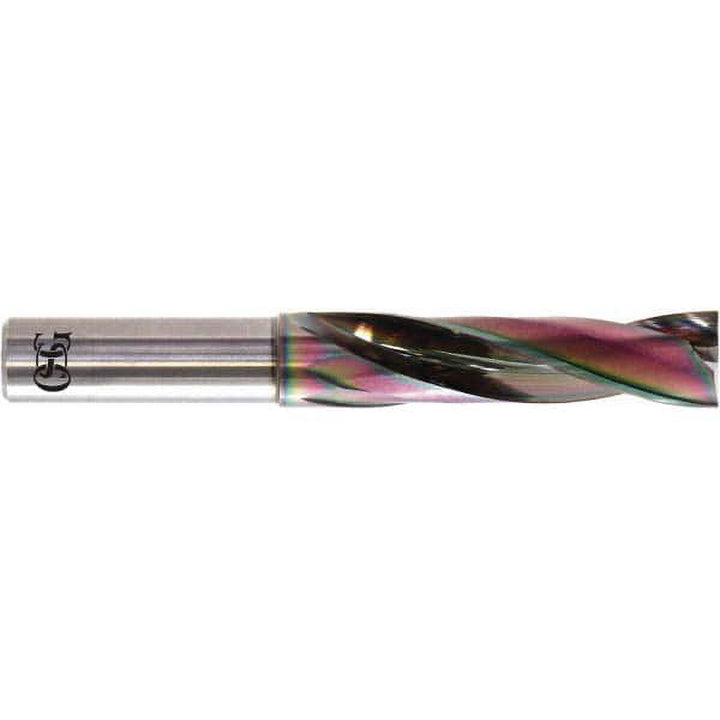

5/8" Solid Carbide Screw Machine Drill Bit, Coated, 180° point - OSG 570062511

OSG

5/8" Solid Carbide Screw Machine Drill Bit, Coated, 180° point - OSG 570062511

MFR# 570062511Series 5700

$414.82List $532.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/8
Flutes2
CoatingCoated

Description

The OSG 570062511 is a 5/8" Solid Carbide Screw Machine drill bit with a Coated finish, 180° point. Suited for steel, alloy steel, cast iron. Series 5700.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit size in5/8
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)68.00
Flute typeSpiral
Number of flutes2
Overall length4.5276
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.6250
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
