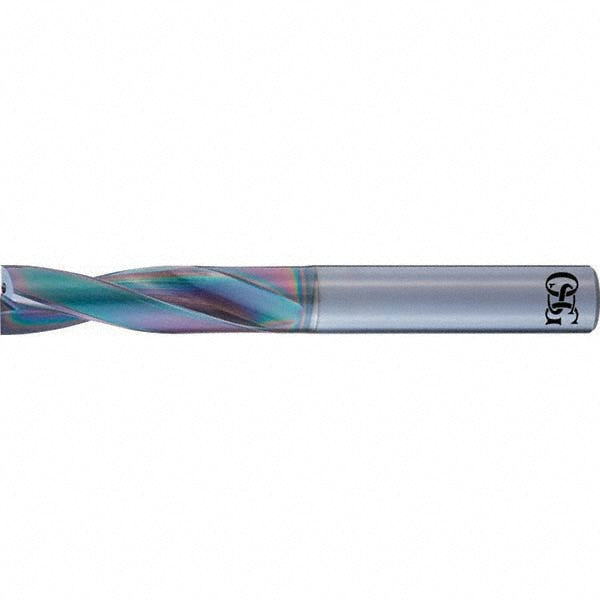

1/8" Solid Carbide Screw Machine Drill Bit, EgiAs, 180° point - OSG 572012517

OSG

1/8" Solid Carbide Screw Machine Drill Bit, EgiAs, 180° point - OSG 572012517

MFR# 572012517Series 5720

$90.85List $116.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2
CoatingEgiAs

Description

The OSG 572012517 is a 1/8" Solid Carbide Screw Machine drill bit with a EgiAs finish, 180° point. Suited for steel, alloy steel, cast iron. Series 5720.

Specifications

Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size in1/8
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle180
Drill tip finish coatingEgiAs
Flute by diameter ratio3xD
Flute length (mm)15.00
Flute typeSpiral
Number of flutes2
Overall length2.1654
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.1250
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
