OSG

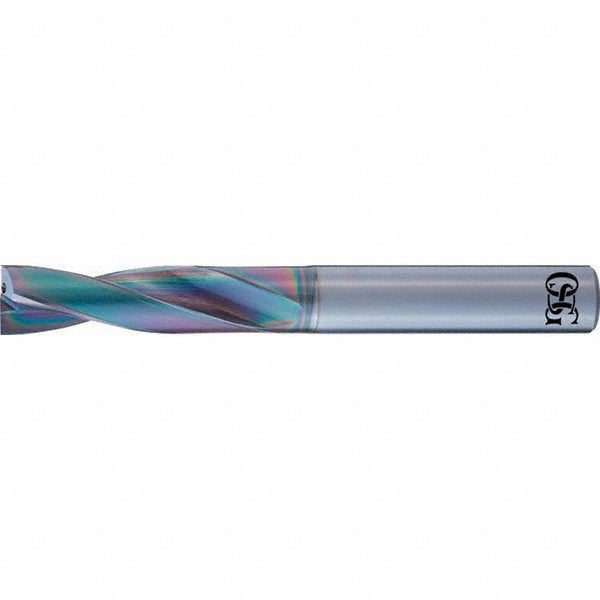

3/8" Solid Carbide Screw Machine Drill Bit, EgiAs, 180° point - OSG 572037517
MFR# 572037517Series 5720
$252.49List $318.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
CoatingEgiAs
Description
The OSG 572037517 is a 3/8" Solid Carbide Screw Machine drill bit with a EgiAs finish, 180° point. Suited for steel, alloy steel, cast iron. Series 5720.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit size in3/8
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle180
Drill tip finish coatingEgiAs
Flute by diameter ratio3xD
Flute length (mm)42.00
Flute typeSpiral
Number of flutes2
Overall length3.3465
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.3750
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
