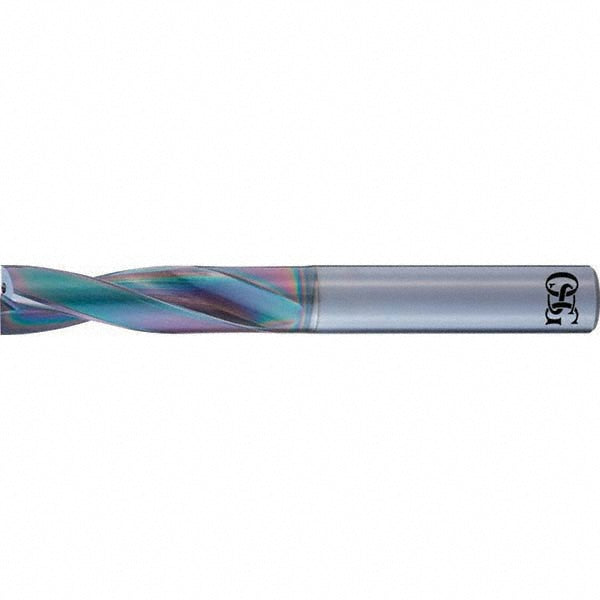

13/32" Solid Carbide Screw Machine Drill Bit, Multi-layer, 180° point - OSG 572040617

OSG

13/32" Solid Carbide Screw Machine Drill Bit, Multi-layer, 180° point - OSG 572040617

MFR# 572040617Series 5720

$207.08List $265.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/32
Flutes2
CoatingMulti-layer

Description

The OSG 572040617 is a 13/32" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 180° point. Suited for steel, cast iron, hardened materials. Series 5720.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit size in13/32
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle180
Drill tip finish coatingEgiAs
Flute by diameter ratio3xD
Flute length (mm)46.00
Flute typeRegular Spiral
Number of flutes2
Overall length3.5433
Point typeFlat Bottom
Primary workpiece materialSteel; Cast Iron; Hardened Materials
Shank diameter0.4375
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
