OSG

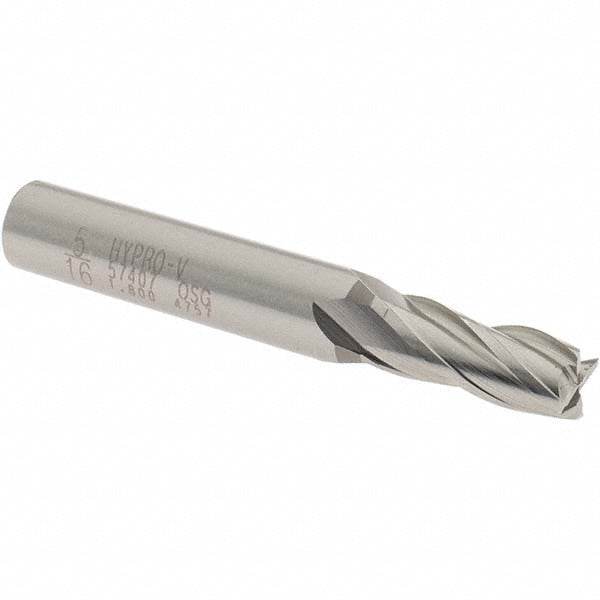

5/16" 4-Flute Vanadium High Speed Steel Square End Mill - OSG 5740700
MFR# 5740700Series 574
$20.01List $25.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes4
MaterialVanadium High Speed Steel
Description
The OSG 5740700 is a 5/16 4-flute Vanadium High Speed Steel (3% Vanadium) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 574.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialVanadium High Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material grade3% Vanadium
Mill diameter in5/16
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Variable helixNo
Variable indexNo
