OSG

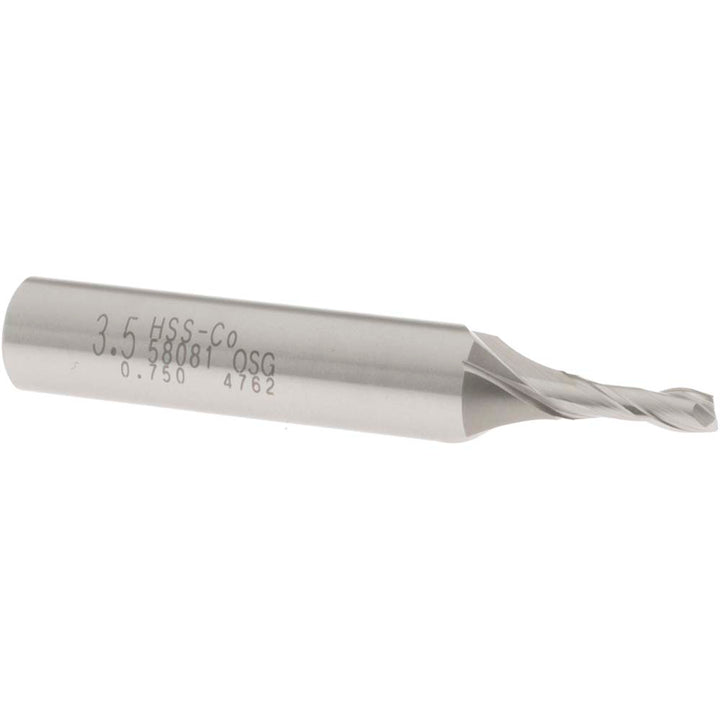

0.1378" 2-Flute Cobalt Square End Mill - OSG 5808100
MFR# 5808100Series 580
$25.39List $32.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialCobalt
CoatingBright/Uncoated
Description
The OSG 5808100 is a 0.1378 2-flute Cobalt (M42) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 7/16 length of cut, 2-5/16 overall length. Series 580.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/16
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeM42
Mill diameter0.1378
Number of flutes2
Overall length in2-5/16
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in3/8
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
