OSG

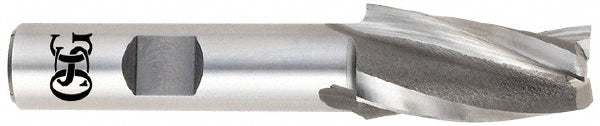

3-Flute Cobalt Tapered End Mill - OSG 5954400
MFR# 5954400Series 595
$77.96List $99.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialCobalt
CoatingUncoated
Description
The OSG 5954400 is a 3-flute Cobalt (M42) tapered end mill. 1-1/8 length of cut, 2-7/8 overall length. Series 595.
Specifications
CentercuttingYes
Coating finishUncoated
End mill materialCobalt
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle25
Length of cut in1-1/8
Material gradeM42
Number of flutes3
Overall length in2-7/8
Shank diameter in3/8
Small end diameter in1/8
Taper angle per side5.00
