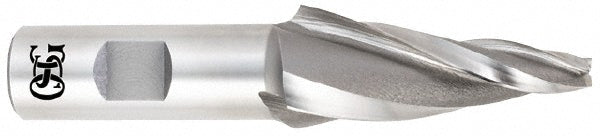

3-Flute Cobalt Tapered End Mill - OSG 5964300
MFR# 5964300Series 596
$72.47List $92.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialCobalt
CoatingUncoated
Description
The OSG 5964300 is a 3-flute Cobalt (M42) tapered end mill. 1 length of cut, 2-3/4 overall length. Series 596.
Specifications
CentercuttingYes
Coating finishUncoated
End mill materialCobalt
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle25
Length of cut in1
Material gradeM42
Number of flutes3
Overall length in2-3/4
Shank diameter in3/8
Small end diameter in1/8
Taper angle per side7.00
