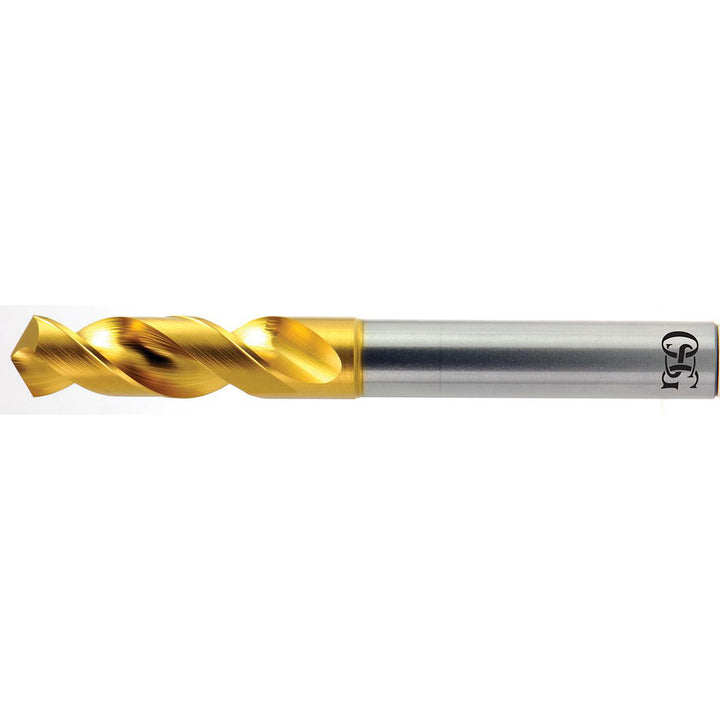

0.0276" Vanadium High Speed Steel Screw Machine Drill Bit, TiN, 150° point - OSG 61507
MFR# 61507Series 1100
$27.08List $34.13
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 61507 is a 0.0276" Vanadium High Speed Steel Screw Machine drill bit with a TiN finish, 150° point. Suited for steel, stainless steel, aluminum & non-ferrous. Series 1100.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.0276
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle150
Flute by diameter ratio5xD
Flute length (mm)4.50
Flute typeRegular Spiral
Number of flutes2
Overall length1.4961
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous
Shank diameter0.1181
Shank typeStraight
Spiral typeRegular
Tool materialVanadium High Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
