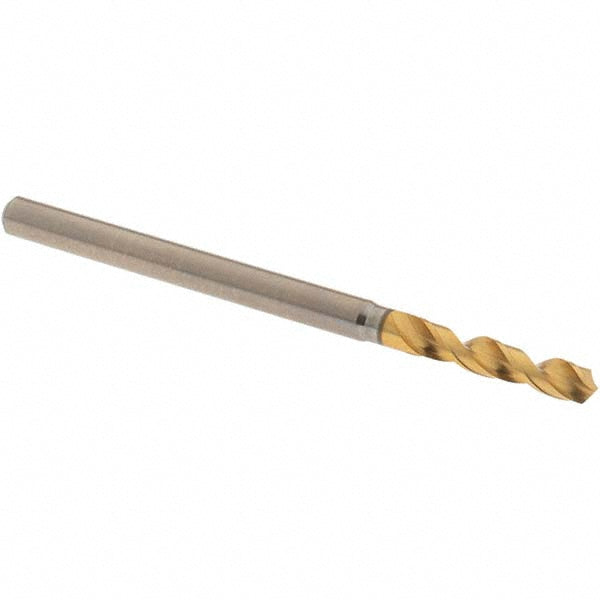

0.1063" High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 61527
MFR# 61527Series 1100
$18.51List $23.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 61527 is a 0.1063" High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit size0.1063
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio5xD
Flute length (mm)16.00
Flute typeSpiral
Number of flutes2
Overall length (mm)48.00
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
