#25 High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 6153811

OSG

#25 High Speed Steel Screw Machine Drill Bit, Coated, 130° point - OSG 6153811

MFR# 6153811Series 1100

$21.62List $27.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

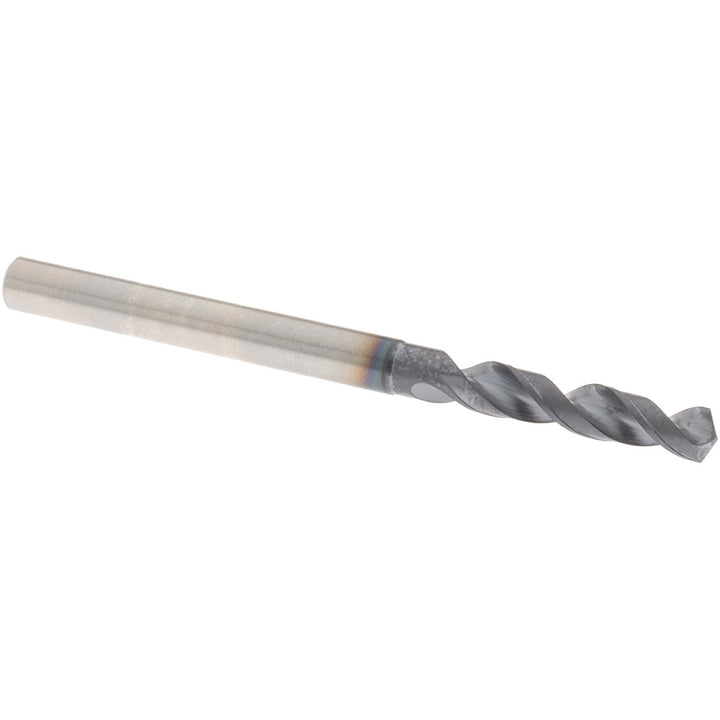

The OSG 6153811 is a #25 High Speed Steel Screw Machine drill bit with a Coated finish, 130° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size0.1495
Drill bit size range0.1000 to 0.1500
Drill bit size wire#25
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio5xD
Flute length (mm)22.00
Flute typeSpiral
Number of flutes2
Overall length (mm)54.00
Point typeFour Facet
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
