OSG

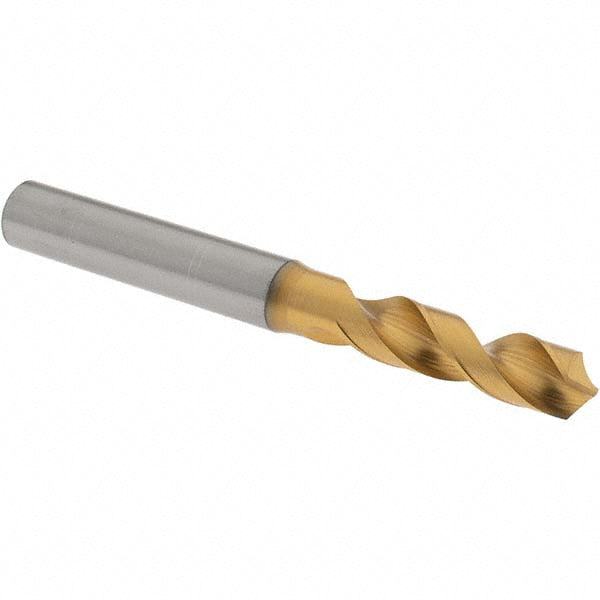

0.3543" High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 61590
MFR# 61590Series 1100
$58.25List $73.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG 61590 is a 0.3543" High Speed Steel Screw Machine drill bit with a Coated finish, 120° point. Suited for steel, stainless steel, aluminum, aluminum alloy, aluminum silicate. Series 1100.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size0.3543
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio5xD
Flute length (mm)40.00
Flute typeSpiral
Number of flutes2
Overall length (mm)90.00
Point typeFaceted
Primary workpiece materialSteel; Stainless Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
