OSG

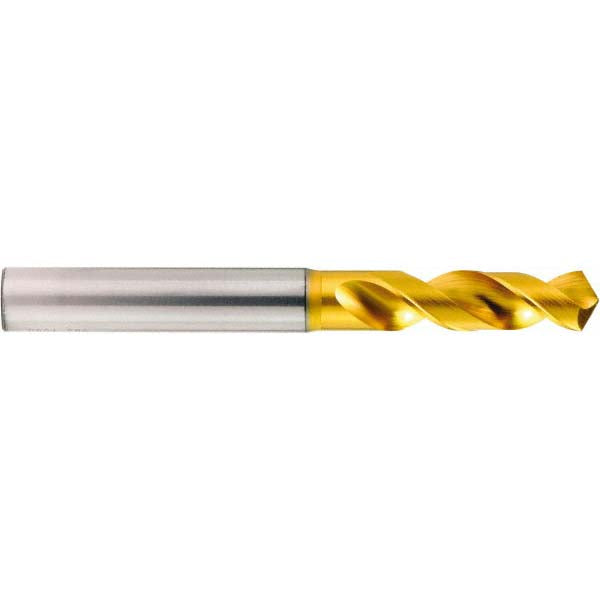

0.4213" Vanadium High Speed Steel Stub Drill Bit, TiAlN, 120° point - OSG 6160711
MFR# 6160711Series 1100
$116.70List $149.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The OSG 6160711 is a 0.4213" Vanadium High Speed Steel Stub drill bit with a TiAlN finish, 120° point. Series 1100.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit size0.4213
Drill bit size range0.4000 to 0.4500
Drill length typeStub
Drill point angle120
Flute length (mm)47.00
Flute typeRegular Spiral
Number of flutes2
Overall length4.0945
Point type4 Facet
Shank diameter0.4724
Shank typeStraight
Spiral typeRegular
Tool materialVanadium High Speed Steel
Web configurationTapered
